Compression fittings provide a trusted method to join copper pipes, removing the need for welded joints or soldering. Both professional plumbers and hands-on homeowners rely on these connectors for quick repairs and installations. The assembly is made up of the fitting body, a compression ring ferrule, and a compression nut. This nut compresses the ferrule, producing a leak-resistant seal.

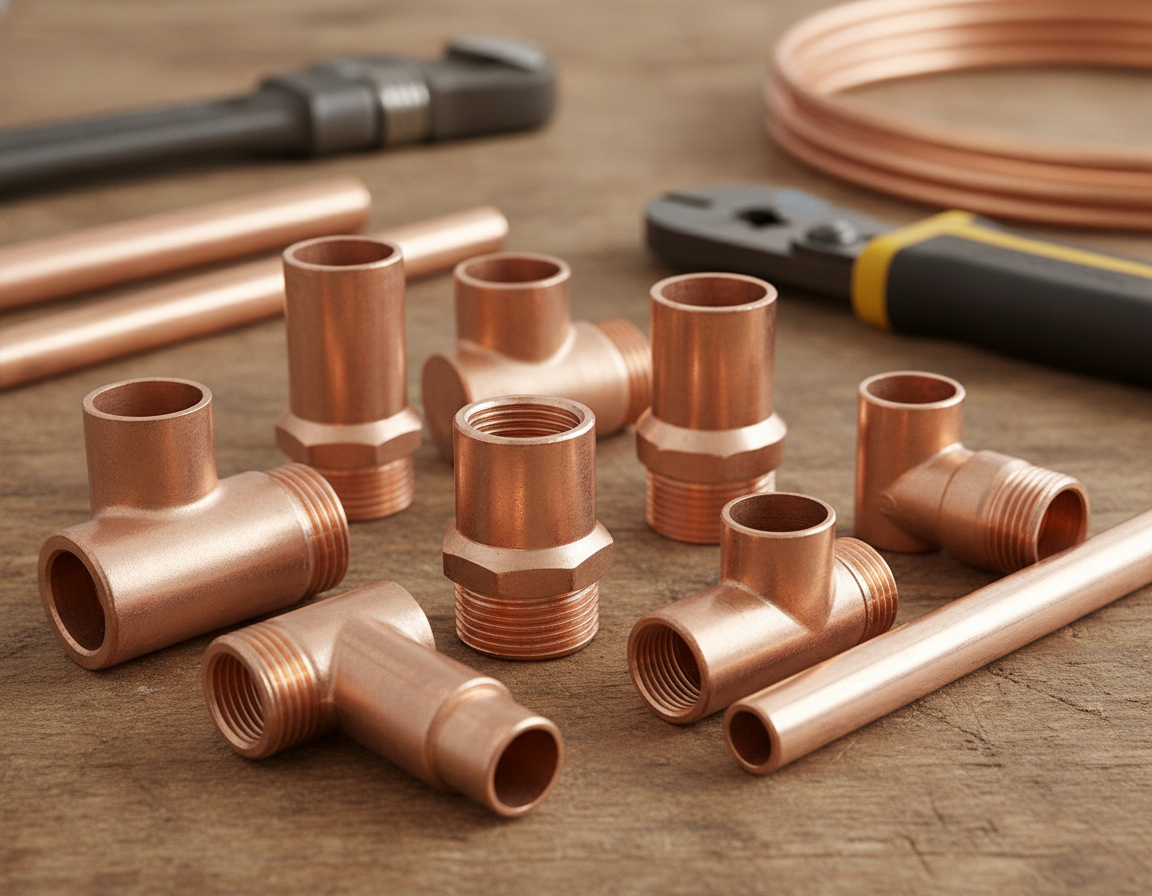

1/2 T Fitting
For a reliable installation, follow several important fitting practices. Begin with straight cuts and remove burrs from the tube end. Then inspect the tube end for scratches, distortion, or other damage. After assembly, hand-tighten the nut before using a wrench for final tightening. It is best to use two wrenches to stop the pipe from twisting. Remember, avoid overtightening and never reuse a compressed ferrule to support a leak-free joint.
In many jobs, compression fittings are chosen instead of soldered connections. They remove the need for a flame and are reusable in many scenarios. One major benefit is that they can be installed more easily in confined or awkward spaces. Yet, they are more prominent and may not be suitable for high-stress areas or where inspection is difficult. For best results, use matched parts and follow the manufacturer’s torque or turn-count instructions.
- Compression fittings connect copper tubing without solder or flame.
- The primary parts are the fitting body, ferrule or olive, and compression nut.
- Prepare tubing with square cuts and deburring for reliable seals.
- Use two wrenches, tighten carefully, and avoid overtightening to reduce leaks.
- Choose brass or compatible materials and follow manufacturer guidance.
Compression Fittings Explained
A compression fitting joins tubing without requiring solder, flame, or heat. They rely on a threaded connection. This connection presses a ring against the pipe to form a seal. They are especially practical in confined areas and field repairs where a fast, dependable connection is needed.
Basic Components
The core components are the fitting body, the ferrule, and the compression nut. The body contains the seat and thread. The ferrule, also called an olive, is positioned between the compression nut and the pipe. When the compression nut threads onto the body, it pushes the ferrule into position.
How The Seal Works
The seal is made through radial compression. When the compression nut is tightened, the ferrule is moved into the tapered bore of the fitting body. That movement allows the ferrule to deform slightly and press against the outside diameter of the tubing.
The result is a line-contact seal that bites into the tube and prevents leaks. The ferrule’s shape and material have a major effect on seal performance when pressure or temperature changes.
Common Industry Names And Variations
Across trades, the same fitting style may be described with different names. In plumbing supply and HVAC catalogs, terms such as compression joint, compression couplings, and compression nut are common. In instrumentation work, vendors list compression joints and compression fittings plumbing alongside flare and push-fit options.
| Term | Usual Application | Primary Detail |
|---|---|---|
| Tightening nut | Domestic plumbing and gas runs | Threaded tightening to compress ferrule |
| Ferrule | Refrigeration, HVAC, and instrument lines | Compresses to grip and seal the tube |
| Mechanical compression joint | Field repairs and connections | No-solder joint often serviceable later |
| Straight compression couplings | Pipe extensions and joins | Straight coupling with ferrule on each side |
| Compression plumbing fittings | Residential and commercial plumbing | Wide material options and sizes |

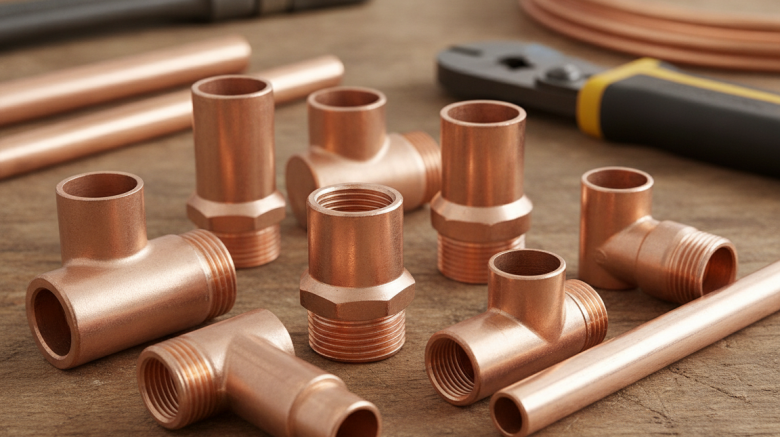

Copper Tubing Compression Fittings
Material selection is critical to compression-joint performance. It impacts performance, durability, and the risk of corrosion. Copper fittings are often a good match for copper tubing. Their similar thermal expansion characteristics help maintain consistent metal contact.
Brass compression fittings also provide helpful ductility. This characteristic helps in forming reliable seals without damaging the tubing.
For high-pressure or high-temperature service, stainless steel compression fittings are often preferred. They also provide resistance to many aggressive fluids. Plastic compression fittings may be suitable for low-pressure household water lines. They remove metal-to-metal contact, which can cause dissimilar-metal issues.
Materials should be matched to the job, pressure rating, temperature, and fluid type. For refrigeration and some plumbing, copper or brass parts are commonly used. They reduce mixed-metal stress. When high mechanical strength is required, stainless steel is often the better choice. However, harder stainless ferrules can deform softer tubing when parts are not sized correctly.
With copper tubing, avoid pairing the line directly with carbon steel or other incompatible metals. Galvanic corrosion can quickly accelerate deterioration where the metals meet. This shortens the service life. If mixed metals are unavoidable, use dielectric unions, insulating sleeves, or choose compatible materials to limit electrical contact.
Before assembling, check the tubing’s finish and wall rigidity. A proper surface quality helps ensure ferrules bite evenly and form a lasting seal. Always follow the manufacturer’s guidance for material compatibility. This limits leaks and increase the life of the joint in the field.
Copper Tubing Compression Tee Sizes And Types
The correct compression tee depends on flow requirements, available space, and tubing size. Compression tees are commonly used in plumbing, refrigeration, and instrumentation systems. Ensuring a proper fit between ferrule geometry and body taper is necessary to preventing leaks.
Branching And Tight-Space Variants
Straight tees allow flow through three aligned ports. Branch tees route flow into a side line with less abrupt direction change. Compact tees are designed for wall cavities and tight areas where standard tees may not fit. They support common sizes like the Compression Tee 1/2 for residential lines.
Common Compression Tee Sizes And Cross-Fit Choices
Installers often order parts by nominal tube OD. Popular choices include the 1/4 Compression T Fitting and the 1/2 Compression T Fitting. For small-diameter tube runs, the 1 4 Tee is often used. Larger branches often call for 1/2 Inch Compression Fitting or 1/2 OD Compression Fitting options. Cross-fit adapters, like 1/2 X3/8 or 3/8 X 1/2 Compression Fitting, enable mixing sizes when needed.
Combination Tees And Adapters
Combination tees like the 1/2 X 1/2 X 3/8 Tee are used for size transitions. A 1/2 X3/8 adapter changes a 1/2 line to a 3/8 branch. The 1 2 To 1 4 Compression Fitting gives a compact reduction for instrumentation taps, sensors, or small branches.
Choosing Brass Tee And T Joint Fittings
Brass is the favored material for copper tubing connections due to its corrosion resistance and thermal expansion compatibility. Look for T Brass Fitting options for durable joints. The 1/2 Brass Tee and 1/2 Tee Brass are popular for mains and branches. Ensure thread pitch and ferrule fit before mixing brands for a proper seal.
| Fitting Style | Typical Use | Typical Size Names | Material Notes |
|---|---|---|---|
| Straight Tee | Main run with branch inline | 1 4 Tee and Compression Tee 1/2 | Brass preferred for copper tubing |
| Side Tee | Outlet from a main pipe run | 1/2 Compression T Fitting, 1/4 Compression T Fitting | Match ferrules with fitting bodies |
| Low-Clearance Tee | Small spaces where standard tees will not fit | Compression Tee 1/2 and 1/2 Inch Compression Fitting | Shorter body while using ferrule compression |
| Combination Tee | Size transitions and instrumentation | 1/2 X 1/2 X 3/8 Tee, 1/2 X3/8, 3/8 X 1/2 Compression Fitting | Step-down adapters are available for small branches |
| Brass T Joint | Durable copper-compatible branches | Common labels include T Brass Fitting | Compatible with copper; verify thread pitch and taper |
Choosing Compression Fittings Instead Of Soldering Or Other Methods
The best joining method depends on the job conditions, code requirements, and fitting capability. Compression fittings are well suited for tight spaces and areas near flammable materials, as they don’t require flame. Soldering, on the other hand, is better for creating a lasting bond in visible, permanent installations.
Benefits For Fast Installs And Confined Work
No-flame fittings are useful for emergency repairs and retrofitting, as they remove the need for hot work permits or torches. They usually need only basic hand tools, which makes them useful for fast repairs. In low-stress systems, limited reuse may be possible, which can help during testing or section replacement.
Durability Limits And Fitting Profile Issues
Compression fittings introduce bulk compared to soldered seams. Ferrules can make it awkward to remove fittings, limiting their reusability. In systems with vibration or pulsation, compression joints may loosen over time, so soldered or brazed connections may be better.
Application Selection Guide
In plumbing, use compression fittings for fast, no-flame repairs in tight spaces. For visible runs where appearance is important, soldering is the better choice.
For gas lines, compression fittings are common for short runs. Always verify local code requirements and use approved materials. Regularly inspect joints to ensure safety.
For HVAC and refrigeration, select copper fittings rated and designed for refrigerants. For heavy thermal cycling, brazed or flare connections may last longer than compression fittings. Compression fittings such as a Compression Tee Fitting or T Compression Fitting can suit service taps, testing points, and temporary connections.
For instrumentation, choose fittings that can deliver leak-tight performance in high-pressure or high-purity lines. Stainless-steel compression fittings can perform very well, but pressure and media ratings must be confirmed before use.
| Selection Factor | Compression Joint | Solder/Braze |
|---|---|---|
| Tooling | Simple hand tools | Heat source, flux, solder, or filler metal |
| Repair Speed | Quick for many repairs | Slower setup, longer cure/cool time |
| Joint Size | Higher bulk | Slimmer finished appearance |
| Reusability | Limited reuse depending on ferrule condition | Cut-out repair usually required |
| Dynamic Stress Performance | Moderate, with loosening possible | Generally stronger under vibration |
| Usual Jobs | Quick repairs, service branches, and accessible joints | Low-profile permanent installations |
Match the fitting type to the system’s needs, adhering to pressure, temperature, and material compatibility guidelines. Compression Tee Fittings and T Compression Fittings can be useful in plumbing, gas-line work, HVAC fittings, and instrumentation when a serviceable or flame-free connection is needed.
Installation Best Practices For Reliable Compression Joints
A reliable installation starts with careful preparation and a clear assembly sequence. Each step is critical to prevent leaks and damage. This section explains how to install compression fittings on copper tubing and when to source compatible parts or tools from Installation Parts Supply.
Proper preparation of copper tubing is essential. Use a tubing cutter to cut it squarely, then remove any burrs with a reamer. Check the tube end for nicks, scratches, dents, or deformation. Clean the tube and check the fitting and ferrule for damage before starting the assembly.
Start by sliding the nut onto the pipe with the threads facing the tube end. Next, place the ferrule olive on the pipe. Push the pipe fully into the fitting body and make sure the ferrule is positioned correctly. Hand-tighten the nut, then use a wrench to align the parts before applying final torque.
Proper tightening is central to a secure compression seal. Hold the fitting body with one wrench while tightening the nut with another. Follow the manufacturer’s turn-based instructions instead of relying only on torque readings. Avoid over-tightening, as it can flatten the ferrule and lead to leaks.
After disassembly, replacement ferrules are often needed. Olives cannot be reused once compressed. If a ferrule is stuck, use a ferrule puller or carefully cut and remove it to avoid damaging the fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing generally does not require inserts. After reassembly, open the supply slowly and inspect the joint for leaks. If needed, tighten in small measured increments. For compatible parts and detailed specifications, refer to Installation Parts Supply.
Ferrule Design Details That Affect Compression Performance
The choice of ferrule strongly affects a compression joint’s performance under pressure and over time. Both one-piece and two-piece ferrules have benefits, limitations, and installation considerations. Ferrule design must match the tubing material, tube size, and fitting body geometry to create a secure, lasting seal.
Ferrule shapes and materials
Ferrules are most often made from brass or stainless steel. For applications requiring chemical resistance or high-temperature tolerance, graphite or specialty alloys are used. A one-piece ferrule is simple to install and can work well with softer copper tube. A two-piece ferrule adds a rear ferrule that helps control rotation and reduce galling, especially in stainless systems.
Asymmetrical and symmetrical ferrule choice
An asymmetrical ferrule is installed in a specific orientation, promoting consistent performance. It is commonly preferred where reliability requirements are high. A symmetrical ferrule can usually be installed either way, making assembly faster. Yet, it may not perform as well on hard plastic tubing, potentially leading to leaks due to varying tubing OD tolerances.
Line contact and surface contact seal geometry
The design of the ferrule controls whether it uses a line contact or surface contact seal. Line contact seals are more resistant to creep and vibration. However, overtightening can turn a line-contact seal into broad surface contact, which may increase leak risk over time.
Tubing considerations and material behavior
Metal tubing must have smooth walls and precise cuts to support proper ferrule seating. Copper tubing, even when stored in coils, can have slight irregularities that affect the seal. Soft plastics and PTFE exhibit cold flow and creep under compression, leading to a loss of seal integrity over time.
Soft tubing and PTFE cold-flow mitigations
To reduce PTFE cold flow, consider tubing inserts, backup seals, or internal O-rings. Hardened ferrules can also help distribute the load. In high-pressure or high-purity environments, select materials and lubricants that minimize galling and residue. Make sure ferrule material matches the tubing, pressure, media, and service requirements for long-term seal reliability.
Installation Mistakes And Compression Fitting Troubleshooting
When diagnosing compression fitting problems, begin by checking nut tightness, tube alignment, and ferrule condition. Minor leaks often come from under-tightening, poor tube seating, or a mis-seated ferrule. To avoid damaging the tubing, stabilize the fitting body with one wrench while tightening the nut with another.
Problems from overtightening may include crushed ferrules, distorted pipe, and leaks that do not stop. Over-tightening can damage the copper tubing or flatten the ferrule, leading to a poor seal. If you notice flattened tubing or a gouged ferrule, it is best to cut back the tubing and replace it with a new ferrule and nut.
Under-tightening results in a gap, allowing slow leaks. For small weeps, tighten in small increments with a wrench until the leak stops. Avoid over-tightening by using incremental tightening for a reliable seal.
Misalignment or twisting can keep the ferrule from compressing evenly. Ensure the tubing enters the fitting straight and fully. If the ferrule is misaligned, it can jam or become difficult to remove. Remove a stuck ferrule with a ferrule puller or carefully cut it away while protecting the tubing.
Identifying and fixing leaks starts with checking ferrule seating, tube condition, and fitting parts. Any damaged ferrule, nut, or fitting body should be replaced. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If leakage continues, re-cut the tube end, replace damaged parts, and reassemble the fitting.
Dealing with corrosion and galling requires both repair and prevention. Corrosion can pit the sealing surfaces, leading to recurring leaks. Galling can lock nuts and bodies, making them difficult to remove. Apply penetrating oil to stuck nuts and allow time for soaking. If threads, tapers, or sealing faces are damaged, replace the affected parts.
Correct material selection helps prevent corrosion, galling, and premature failure. Avoid pairing carbon steel with copper to prevent galvanic reactions. Choose ferrules and fittings suited to the system’s chemistry, pressure, and temperature. In cleanroom or high-purity service, volatile cleaning agents may increase galling risk, so use anti-galling ferrules and approved compatible lubricants where permitted.
Stuck nut recovery often begins with penetrating oil and patience. If the nut won’t budge, cutting and replacing the nut and ferrule may be faster than prolonged attempts. Use proper tools to avoid damaging the fitting body.
When a compression joint is not the right choice, consider alternatives. Systems with constant vibration, dynamic stress, or low-profile requirements may be better served by soldered, crimped, flared, or welded connections. When planning repairs or new installs, compare compression and soldering for permanence, profile, accessibility, and code requirements.
| Issue | Common Cause | Quick Fix | Longer-Term Correction |
|---|---|---|---|
| Minor seepage | Under-tightened nut or mis-seated ferrule | Apply small turns while holding the body steady | Install new ferrule and nut and re-cut tube end |
| Ongoing leak despite tightening | Overtightening damage to ferrule or tubing | Cut tube back and reassemble with new parts | Follow turn-count guidance and avoid excess force |
| Stuck ferrule or nut | Galling or ferrule swaging | Soak, pull, or carefully cut away the part | Replace affected parts; choose anti-galling materials |
| Pitted sealing surface | Incompatible materials or chemical exposure | Remove and replace damaged components | Choose correct materials and confirm code compliance |
| Leak under vibration | Dynamic stress exceeds fitting suitability | Clamp, secure, and inspect the affected run | Use a joining method better suited to vibration |
Final Thoughts
In summary, Copper Tubing Compression Fittings provide a versatile, flame-free way to join copper tubing across many applications. They perform best when materials are compatible and proper installation methods are followed. Brass, copper, stainless steel, and certain plastics are compatible, provided they avoid galvanic corrosion and thermal mismatch.
The Installation Parts Supply guide recommends replacing ferrules during reassembly and ensuring fittings are tightened to manufacturer specifications. This supports reliable sealing.
Choose compression fittings for simple repairs, confined spaces, and removable joints. They have limitations compared to soldered connections. Long-term performance comes from ferrule design, tubing quality, and correct assembly sequence.
For high-pressure or high-vibration systems, use ferrules rated for these conditions. Consider alternative joining methods when necessary.
This summary highlights the value of careful installation and routine inspections. Make sure cuts are square, clean, and deburred. Use the sliding nut and ferrule correctly, add an insert where required, hand-tighten first, and finish with measured wrench turns.
Use manufacturer torque or turn-count guidance to avoid leaks, ferrule damage, and tube distortion. For matching parts and compatible ferrules, check with qualified suppliers. They should offer 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options to match your project.
